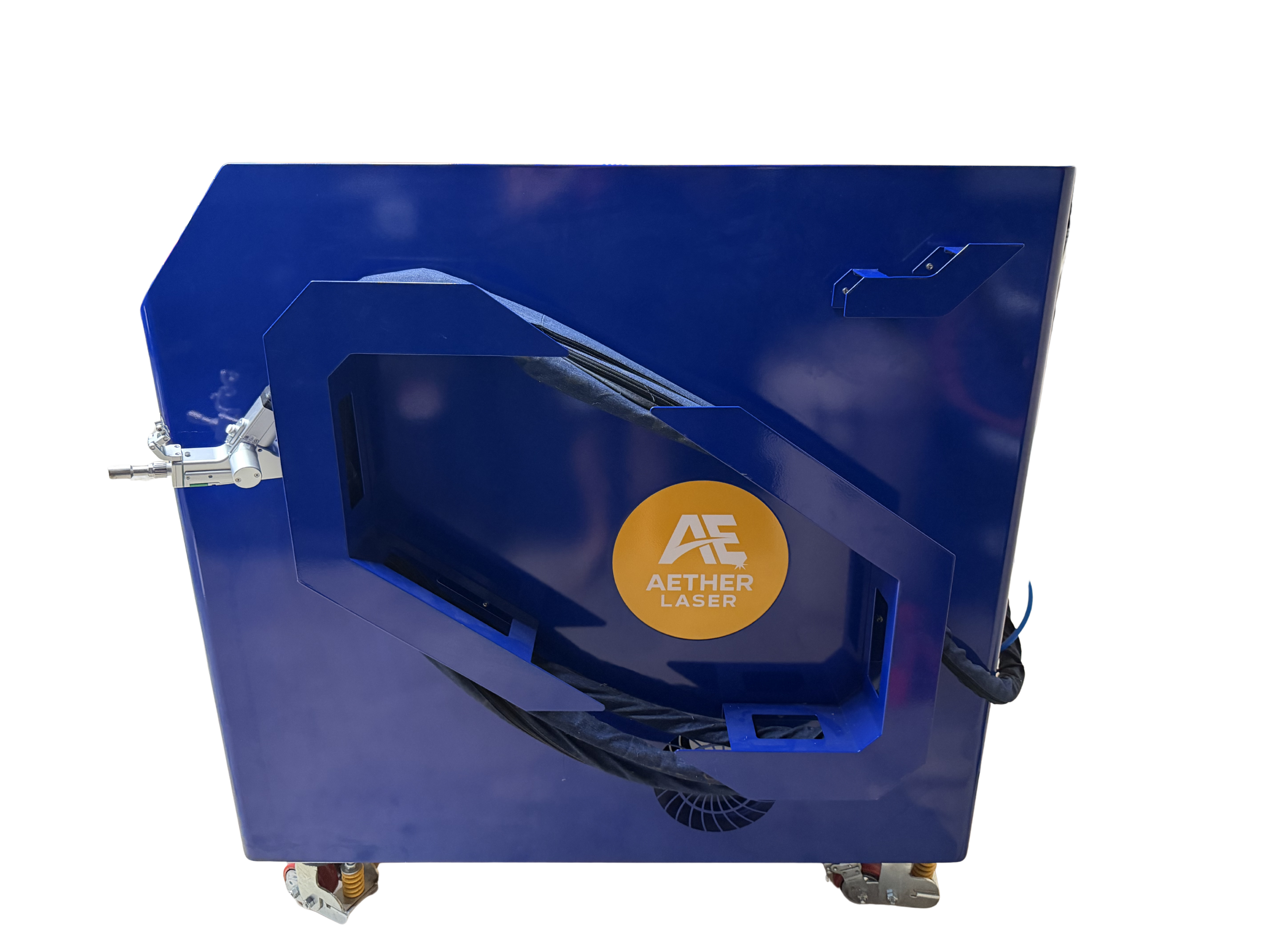

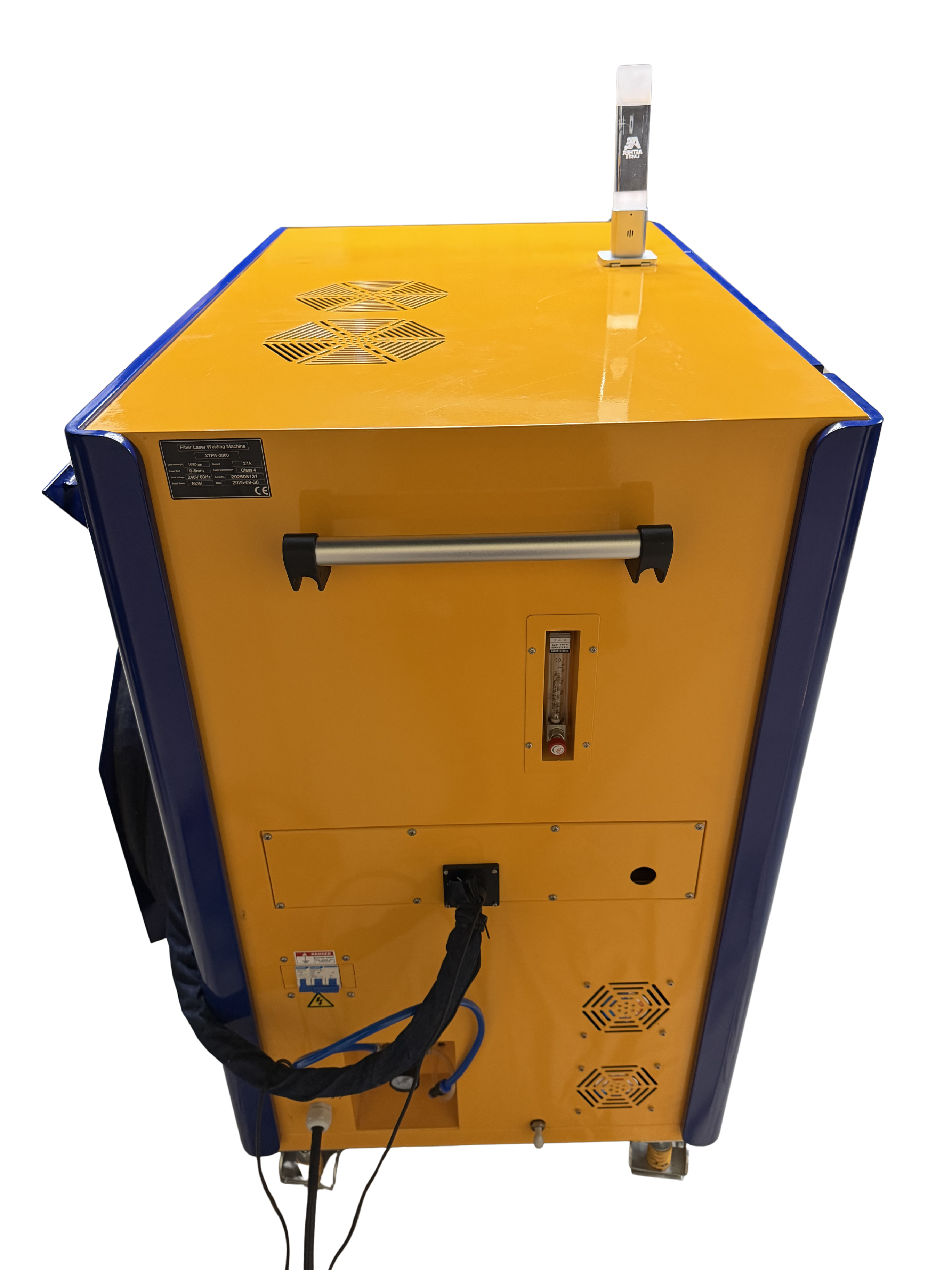

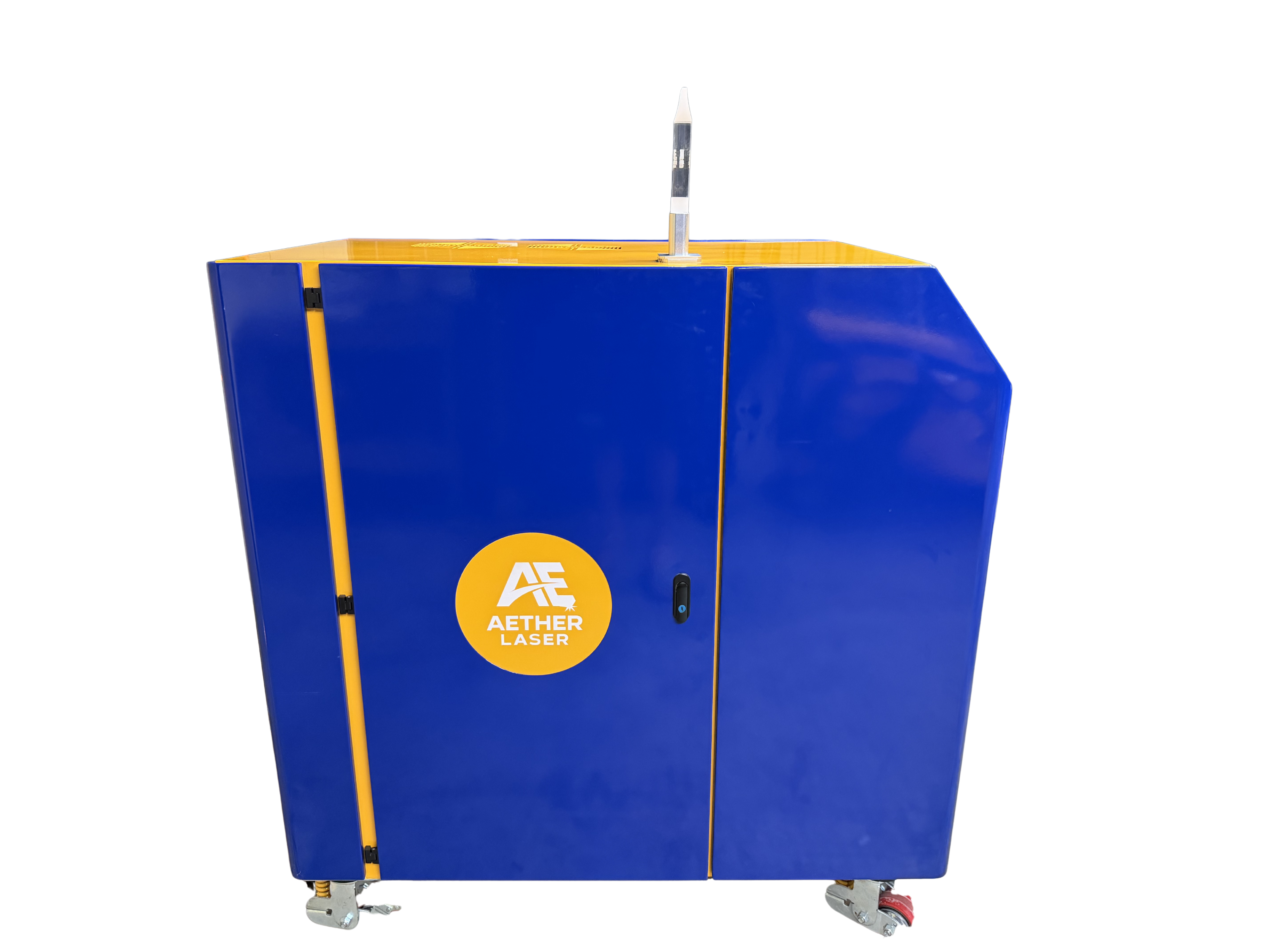

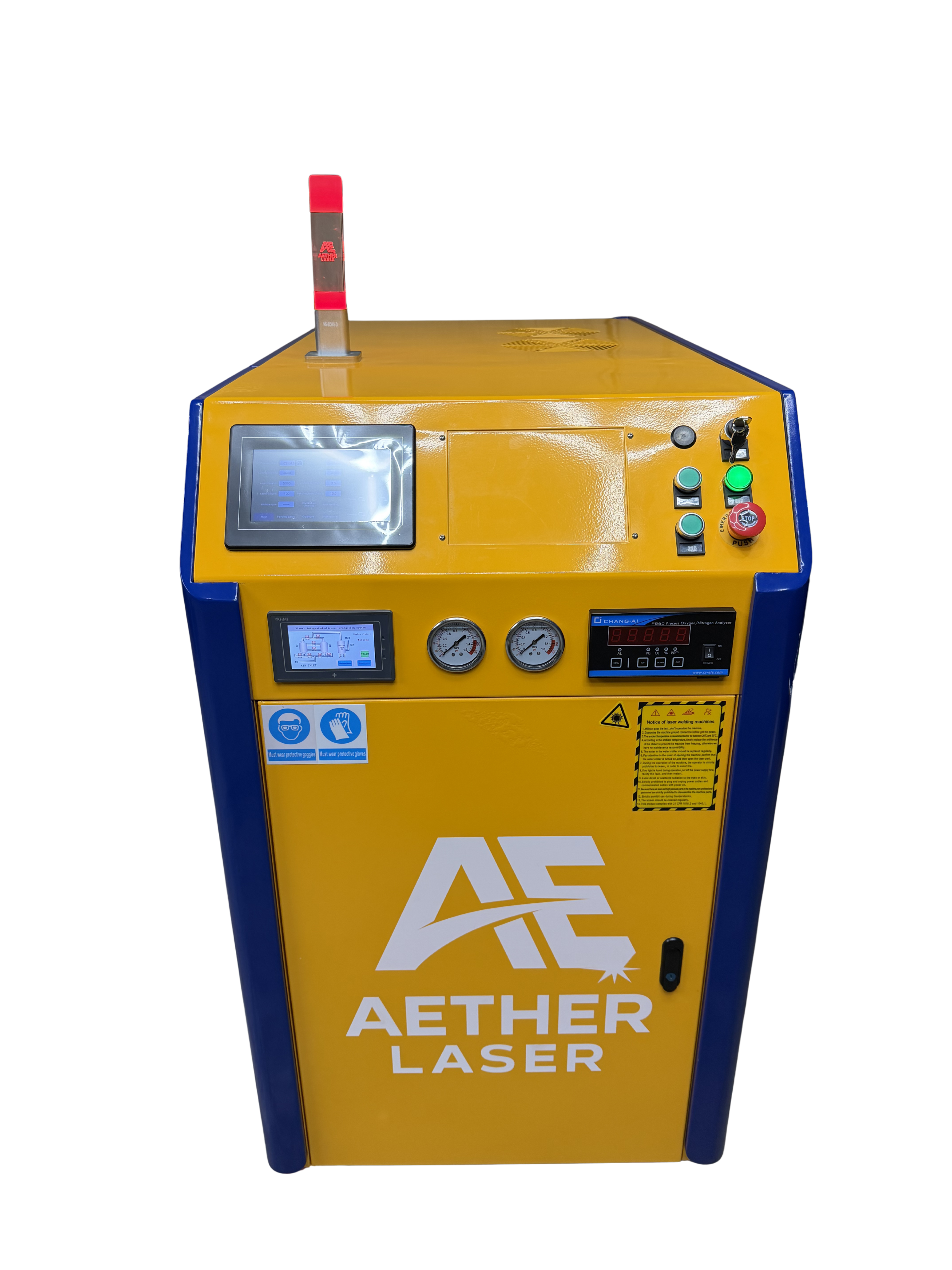

XT-W-2000W — 5-in-1 Laser Welder + N₂ Generator

Name: XT-W-2000W 5-in-1 Laser Welder + Nitrogen Generator
Brand: XT Laser
Price: 19995 USD
Availability: InStock

XT Laser source · SUP 23T head · dual wire feed · built-in nitrogen generator · 3 cleaning lenses

2000 W outputWeld ≤6 mmBuilt-in N₂ 99.99%Dual wire feed

$19,995USD · or best offer

Like-new demo · <5 hours of use · US stock

Make an Offer Book a Live Demo

Photo coming soon

Full Specifications

XT-W-2000W · 5-in-1 Laser Welding System
Functions	5-in-1 — Weld · Cut · Clean · Seam Clean · Battery Weld
Laser Source	XT Laser fiber laser — 2000 W
Source Architecture	Single resonant cavity, single-mode; TMI/SRS suppression solved
Beam Quality (M²)	1.3–7
Electro-Optic Efficiency	>35%
Wavelength	1080 ±5 nm (source) · 1070 nm (head)
Fiber Core	50 μm

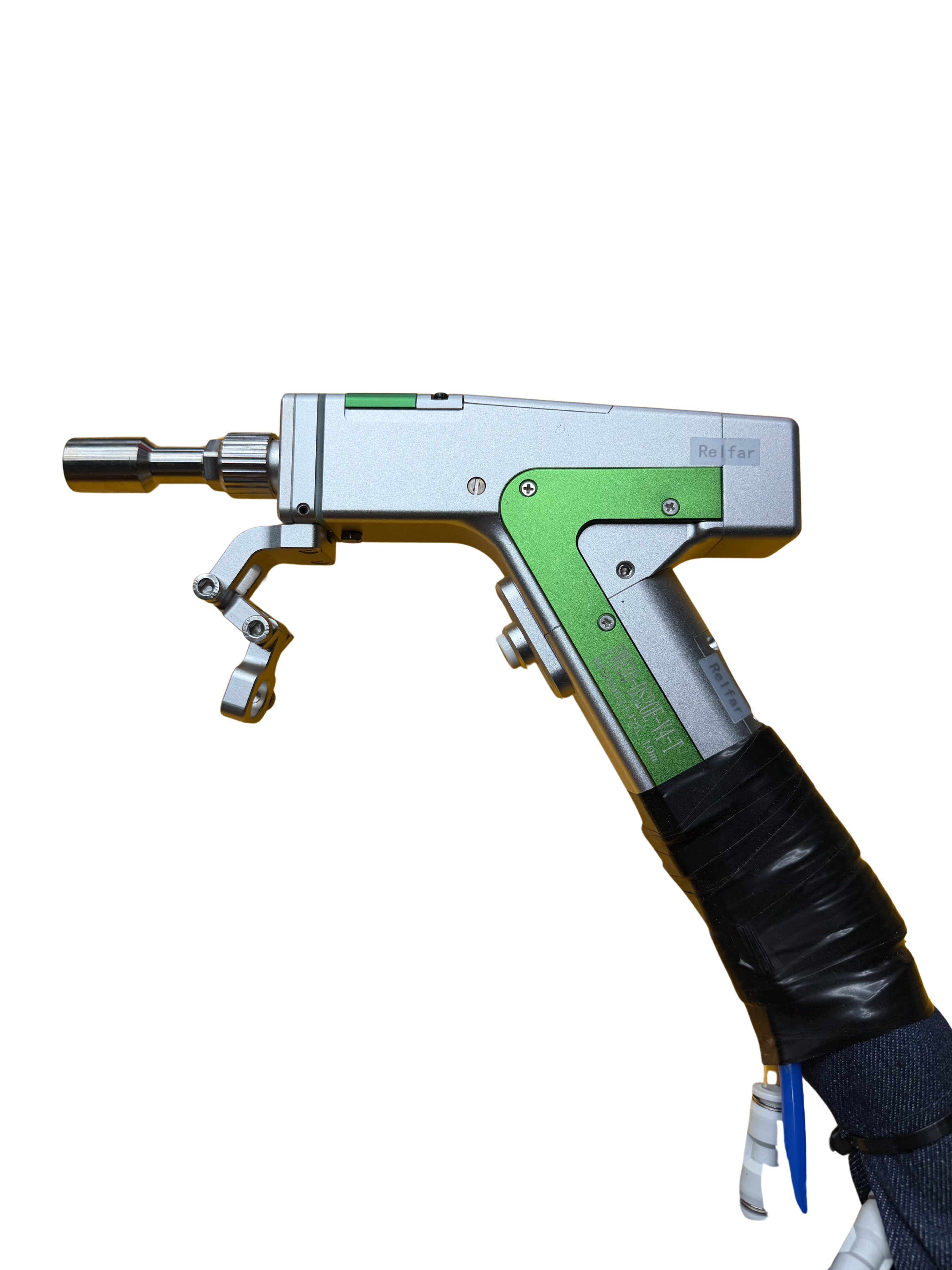

Welding Head	SUP 23T — 0.75 kg, safety detection system
Collimation / Focus	D16 × F60 mm / D20 × F150 mm
Max Air Pressure	15 Bar
Vertical Focus Range	±10 mm
Spot Adjustment	Line 8–10 mm
Welding Thickness	≤6 mm (stainless, mild steel, galvanized, aluminum)
Wire Feeder	Dual wire feed — double-drive, LED display, bridges gaps up to 2.5 mm
Cleaning Widths	30 / 60 / 120 mm — 3 interchangeable lenses included
Nitrogen Generator	Built-in PSA — 99.99% purity, 1.2 Nm³/h output
Air Dryer	Built-in refrigerated — 500 NL/min capacity
Cooling	Dual-temperature refrigerant system (water-free, maintenance-free)
QBH Cable	10 m armored, 50 μm fiber core
Applicable Materials	Stainless, low-carbon steel, iron, copper, alloy, spring steel, galvanized
Machine Dimensions	1220 × 690 × 1265(H) mm
Machine Weight	270 kg
Power Input	AC 220 V / 6,300 W / 28 A
Warranty	1 year machine + 2 years laser source + lifetime 24/7 support
Condition	<5 hours of use — like new
Included	33× protective lenses, cleaning lens, wrench, nameplate, laser safety glasses

Applications

Welding — butt, lap, tee, edge & corner joints in stainless, carbon steel, aluminum, copper, brass, titanium alloys.
Cutting & seam cleaning — sheet-metal fabrication 0.3–8 mm and pre/post-weld prep in one platform.
Battery welding — precision joining for battery and tab work.
Industries — aerospace & defense, automotive & marine, manufacturing, construction & energy, oil & gas.

Purchased new for testing — under 5 hours of use, not production.

XT Laser source, SUP 23T head, built-in PSA nitrogen — same tier as machines costing 2–3× more.

In stock near Houston (The Woodlands, TX). No customs, no 35–45 day wait.

Up to 2 years on the laser source, plus lifetime 24/7 support from XT Laser.
